MW-MB

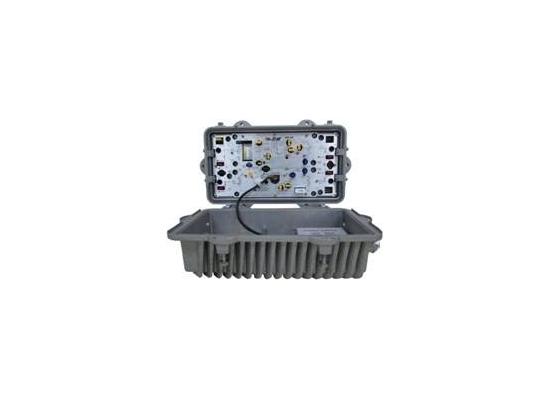

MW-MB is a trunk amplifiers which can be installed in HFC network or traditional cable network; It is balanced amplifier which have three RF output ports ,The max gain can reach more than 40dB The power supply is ~60V;Each port feed AC power outside.The working voltage range is ~35V90VAC;. MW-MB is furnished in an aluminum housing that protects the electronics from water .The installation is both horizontal and vertical.

Description
1、1000MHz platform
2、35-90Vac power supply,220v optionl
3、–20dB directional test points/ports
4、Two-way operation
5、Three independent  RF output
6、15-amp power passing
