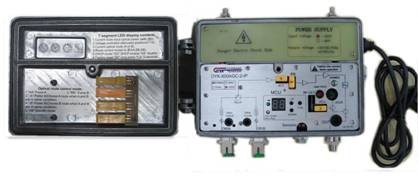

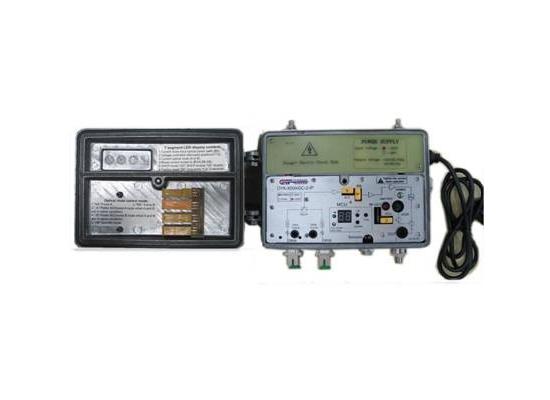

OYK-800-AGC-2-IP

OYK-800-AGC-2-IP is a specially designed Optical Node/ Receiver to be applied in modern HFC networks. With excellent performance and extinguish finishing, it's highly welcome worldwide. OYK-800-AGC-2-IP enables two reception of optical signals in the forward path (eg. From optical transmitter in the Headend) within wide range of optical wavelength from 1100nm to 1600nm. Additionally it ensures high gain RF signals received by the optical input module. Built-in AGC assures compensation of changes of optical power, guaranteeing stable RF output level, independent on changes of input optical signal. Measurement of optical power is done inside of the unit and is shown on the LED display installed in the receiver, there is no need to use external optical power meter. High level GaAs hybrid module provides ideal optional node for analog and digital transmission. It can meet any advanced network requirements. IP transponder ensure monitoring the status of node remotely through IP network.

Description
1、Two optical path switch automatically
2、OpticalWavelengthRange1100 nm -1600nm
3、1000 MHz platform
4、Built-in AGC assures compensation of changes of optical power(-4dBm~3dBm), guaranteeing stable RF output level, independent on changes of input optical signal.
5、Ability to operate at extremely low Input optical power
6、Digital Indication of input optical power level
7、High power GaAs output designed especially for mixed analogue and digital signal.
8、Output Level adjustable 0 -20 dB
9、high output level(114dBμV)
10、High efficiency Switch mode power supply
11、Easy maintenance
12、IP transponder ensure remote monitoring
